DrChik

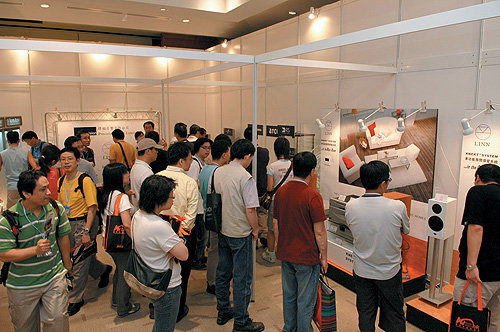

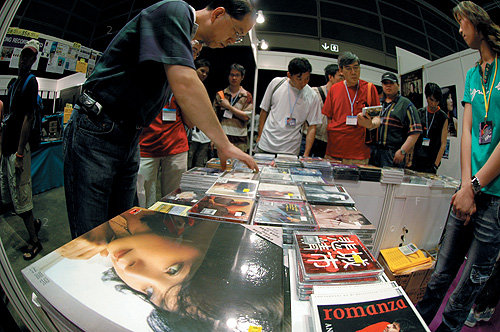

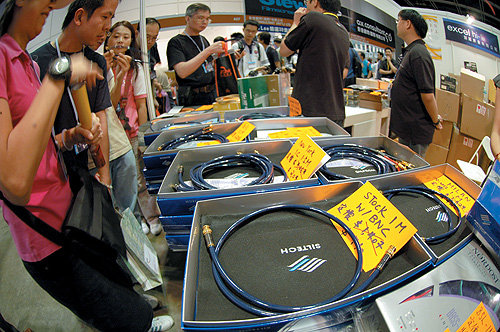

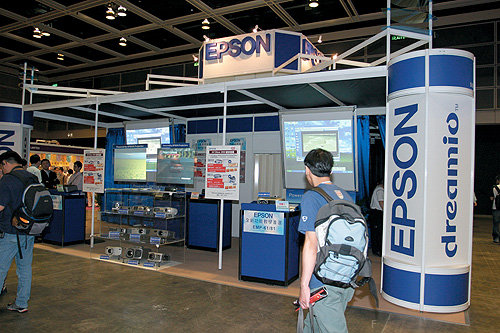

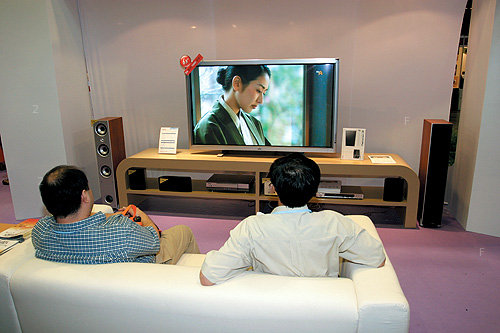

[center]上屆2004香港高級視聽展 pics[/center]
[center]http://www.26fun.com/bbs/attachm ... 8&checkid=1813d[/center]

[ Last edited by DrChik on 2005-5-14 at 02:10 PM ]

DrChik

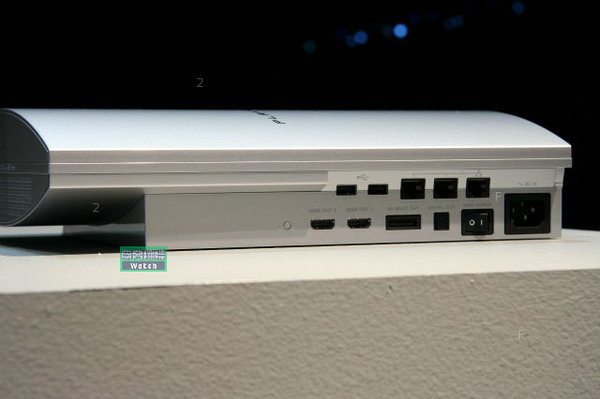

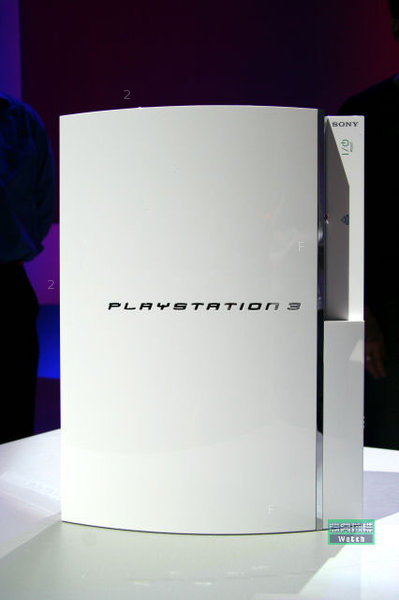

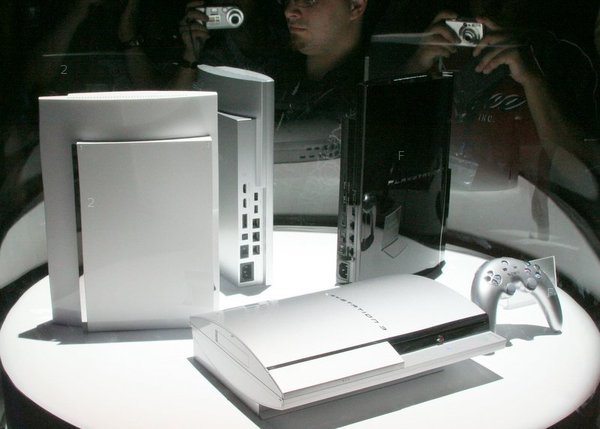

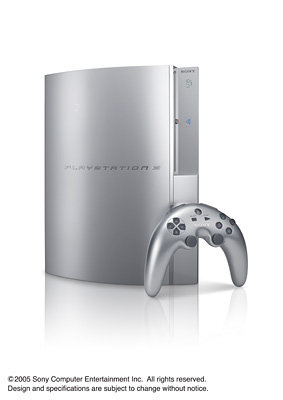

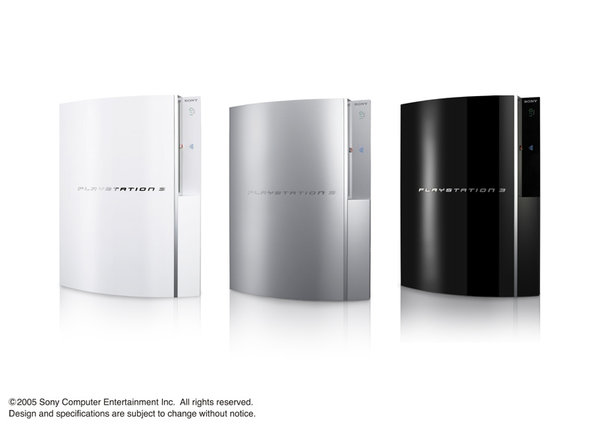

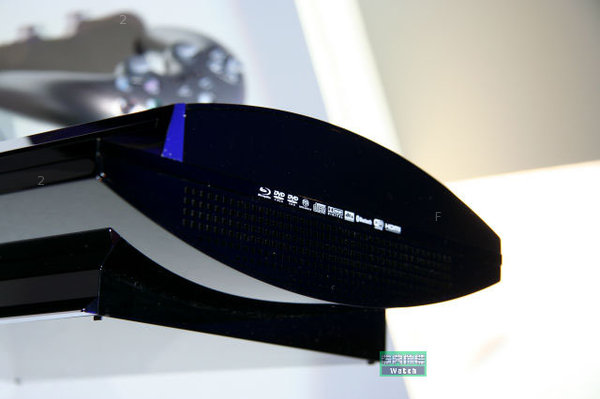

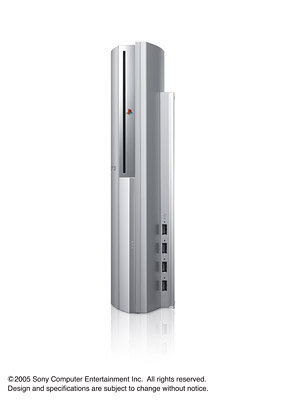

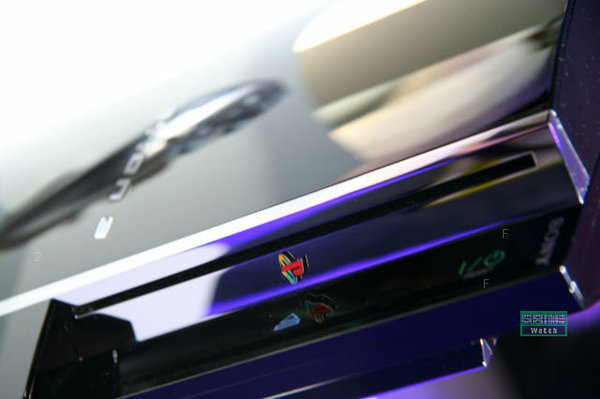

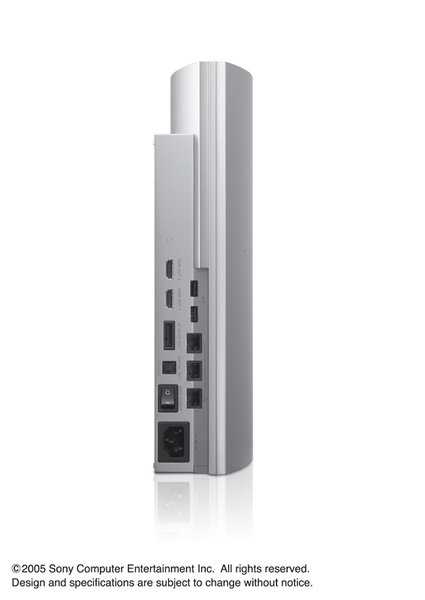

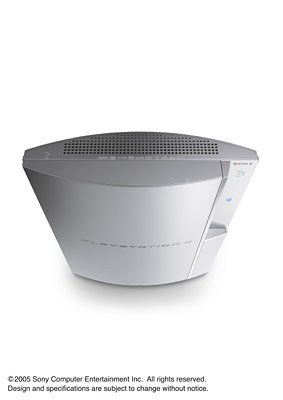

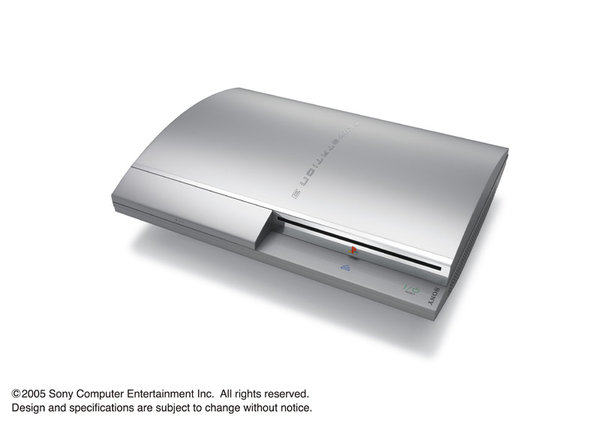

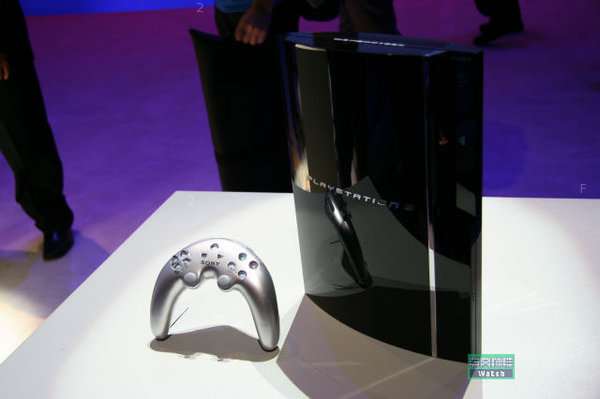

[center]PS-3[/center]

暫定推出日期:2006年4月
暫定價格:$ 3800 h.k
HDMI OUT X2  (1080P)對應可能

[center]http://www.26fun.com/bbs/attachm ... 5&checkid=3db8e
http://www.26fun.com/bbs/attachm ... 4&checkid=bc01c
http://www.26fun.com/bbs/attachm ... 6&checkid=2f887
http://www.26fun.com/bbs/attachm ... 5&checkid=a42bd
http://www.26fun.com/bbs/attachm ... 6&checkid=b2fb7[/center]

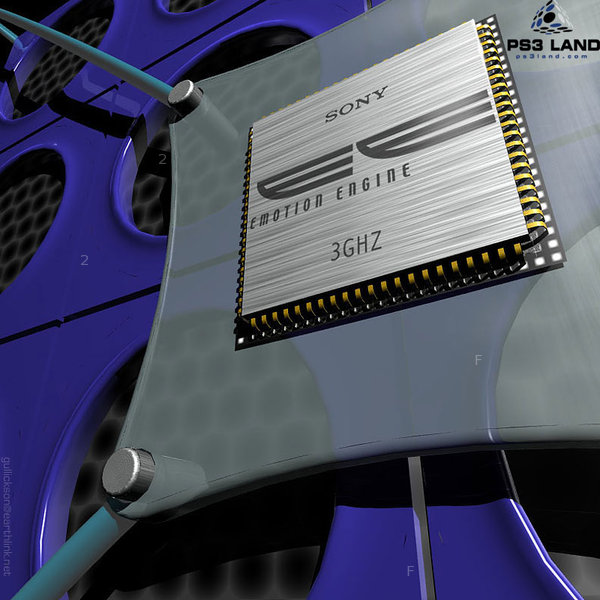

CPU

Cell Processor
PowerPC-base Core @3.2GHz
1 VMX vector unit per core
512KB L2 cache
7 x SPE @3.2GHz
7 x 128b 128 SIMD GPRs
7 x 256KB SRAM for SPE
* 1 of 8 SPEs reserved for redundancy
total floating point performance: 218 GFLOPS

GPU

RSX @550MHz
1.8 TFLOPS floating point performance
Full HD (up to 1080p) x 2 channels
Sound

Dolby 5.1ch, DTS, LPCM, etc. (Cell- base processing)
Memory

256MB XDR Main RAM @3.2GHz 256MB GDDR3 VRAM @700MHz
System Bandwidth

Main RAM 25.6GB/s
VRAM 22.4GB/s
RSX 20GB/s (write) + 15GB/s (read)
SB< 2.5GB/s (write) + 2.5GB/s (read)
System Floating Point Performance

2 TFLOPS
Storage

Detachable 2.5" HDD slot x 1
I/O

USB Front x 4, Rear x 2 (USB2.0)
Memory Stick standard/Duo, PRO x 1
SD standard/mini x 1
CompactFlash (Type I, II) x 1
Communication

Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T) x 3 (input x 1 + output x 2)
Wi-Fi IEEE 802.11 b/g
Bluetooth 2.0 (EDR)
Controller

Bluetooth (up to 7)
USB 2.0 (---d)
Wi-Fi (PSP)
Network (over IP)

AV Output

Screen size:
480i, 480p, 720p, 1080i, 1080p
HDMI: HDMI out x 2
Analog: AV MULTI OUT x 1
Digital Audio: DIGITAL OUT (OPTICAL) x 1
Disc Media

CD:
PlayStation CD-ROM, PlayStation 2 CD-ROM, CD-DA, CD-DA (ROM), CD-R, CD-RW, SACD, SACD Hybrid (CD layer), SACD HD, DualDisc, DualDisc (audio side), DualDisc (DVD side)

DVD:
PlayStation 2 DVD-ROM, PlayStation 3 DVD-ROM, DVD-Video, DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW

Blu-ray Disc:
PlayStation 3 BD-ROM, BD-Video, BD-ROM, BD-R, BD-RE

[ Last edited by DrChik on 2005-5-23 at 03:08 PM ]

DrChik

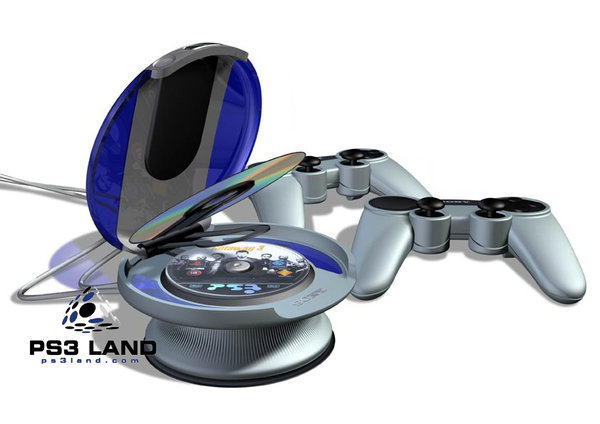

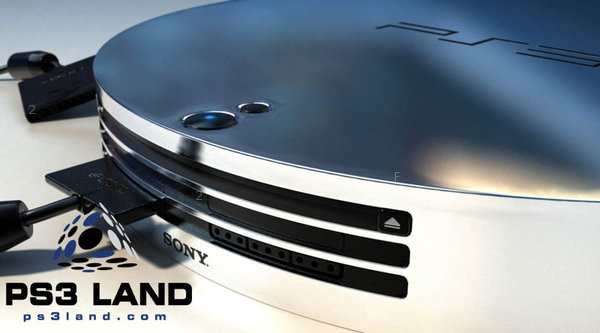

MORE PS-3 PICS

DrChik

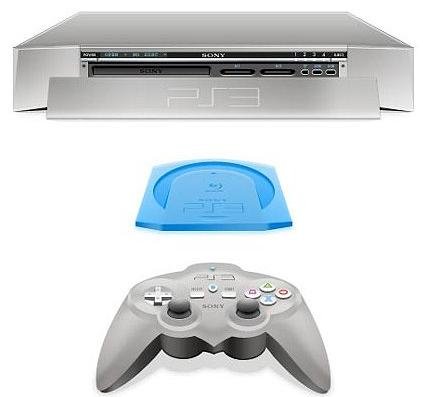

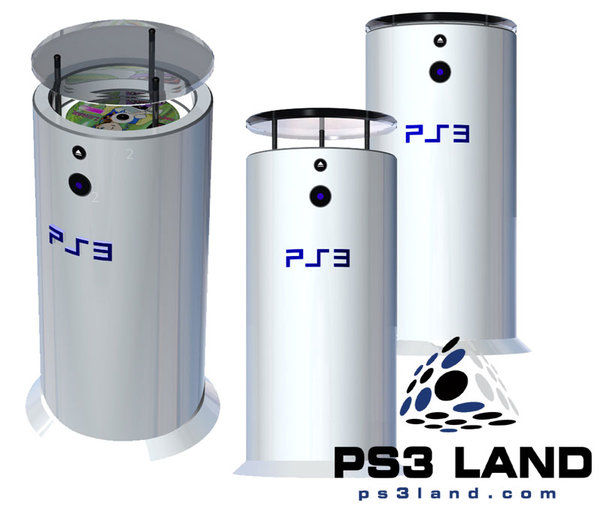

Disclaimer, disclaimer, yadda yadda. We’re kind of hoping these pics aren’t legit because frankly, we’re not feelin’ the love for the design. But we digress! The specs that accompany these shots are saying the Sony PS3 will have ---less controllers, a 160GB hard disk, 1 CELL processor running at 4GHz (pumping out 256 GFLOPS worth of power — getting close to 1.21 gigawatts, here, folks), ethernet port, USB 2.0, memory stick duo support, and will read Blu-ray disks only. Backward compatibility for the older systems won’t be via the drive mechanism, then, but will be achieved via emulation in the CELL processor itself, providing retro compatibility with both PS1 and PS2. Controllers will be very similar to the PS2 controllers, plus add ---less. All of the above will be seen in the first line, to be released in Japan in March 2006, with a second version to follow in late 2006 that will be sporting a 400GB hard drive. The rev2 will also apparently be able to record TV shows on Blu-ray disks (like we said: disclaim, disclaim…). More nitty gritty specs via the read link, and another pic after the jump.

[center]http://www.26fun.com/bbs/attachm ... 0&checkid=76f37[/center]

[ Last edited by DrChik on 2005-5-23 at 03:09 PM ]

DrChik

Originally posted by LoGG1 at 2005-5-26 01:26:
你好! 小弟乃窮苦海外留學生一個，但...

非常開心又多個人玩機,不過你部機既型號可能錯左,條LINK睇唔到,但您如想換SPEAKER,
可考慮2000元左右既[KEF]和[JM LAB],睇戲聽歌都應付得到,算係平靚正既選擇,亦襟用.
或你可買一些5.1套裝SPEAKER,2000元左右都可以,但一定要揀D木箱製既SPEAKER
不要揀D用其他物料做既,因木箱製既SPEAKER比較靚聲.去HI-FI店行下應該好易搵得到.
邊隻牌子就未能話到比您知,因我呢D雜牌軍好少接獨套裝,SORRY.
Woofer out方面,通常都插 L in,但我建意買條一開二既線,L R 都插晒,D低音會冇咁死.

[ Last edited by DrChik on 2005-5-26 at 02:17 PM ]

DrChik

Originally posted by hin169 at 2005-5-26 17:46:
呀..
我呀媽比人叫左去買左套 ELAC 既野..
我想問下呢個野D出品得唔得GA

ELAC VERY GOOD la.放心去買啦,如果隻speaker越大隻咁就越好添,放心放心

DrChik

Originally posted by LoGG1 at 2005-5-27 00:01:


Dr. Chik, 多謝你既提議! 我曾去Hi-Fi鋪行下。

條correct link係
http://www.jvc.ca/en/consumer/product-detail.asp?model=THB-5000

你有冇玩黑膠碟架?

睇到您部机啦,
我冇玩黑膠架

DrChik

Originally posted by 仙道 at 2005-5-27 01:10:
I'm using SANYO Z3 projector with HDMI, can I see 1080p with PS 3?? Because my Z# is only 1080i for max resolution I wonder if they can collaberate?

經我再一次證實之後,SANYO Z3 只能support 1080i only.而1080P係絕對出唔到既.
或你可等SANYO Z4


Brightness: 800 ANSI lumens
Panel System: 3 x 0,7" TFT p-SI
Resolution
1,280 x 720 pixels (HDTV)
Computer Compatibility
XGA
S-VGA
VGA
Mac
HDTV1080i
720p
Horizontal resolution tv lines
lamp 135 W UHP
Uniformity 85 %
Contrast ratio 2000:1 Digital keystone correction
Vertical +/- 20 °
Standard Objective
F= 2,04 - 2,54
f= 21,5 - 27,7
Aspect Ratio 1,4 - 1,8 : 1
Throw distance 1,2 - 6,1 m
Color system
PAL
SECAM
NTSC
NTSC4.43
PAL-M/N
Frequence
H. sync. 15 - 80 kHz
V. sync. 50 - 100 Hz
Dot clock 100 MHz  Eco mode function
Fan noise (eco) 24 dB
Voltage 100 - 240
Power consumption 210 watt
Dimensions
359 x 116,7x 273,5 mm width x height x depth
Weight 4,1 kg
Lens-shift-function
horizontal, manual
vertical, manual
DRIT (Digital Realized Interpolation Technology)
Plug & Play
Power Mangement
Video signal input 1: Signal (Input)
D-Sub15 (RGB/SCART-RGB)
Video signal input 2: Signal (Input)
HDMI
Video signal input 3: Signal (Input)
Composite-Video(1 x RCA)
Video signal input 4: Signal (Input)
S-Video (Mini DIN4)
Component-Video Y, Pb/Cb, Pr/Cr (3 x RCA)
Component-Video Y, Pb/Cb, Pr/Cr (3 x RCA)
Control Port
RS232 Control Port

DrChik

Originally posted by LoGG1 at 2005-5-27 00:12:
我部機換Speaker得唔得 (定係換來都冇用)? 想買部好D但又唔會留o係度好耐...

你既問題我聽曰答您,放心

DrChik

Originally posted by LoGG1 at 2005-5-27 00:12:
我部機換Speaker得唔得 (定係換來都冇用)? 想買部好D但又唔會留o係度好耐...

其實您部機只要換D大隻D既木箱製SPEAKER,已經會有好大改進,
如果唔留得耐,更係越平越好啦,多D留意D減價貨或二手貨.
留返D錢黎買碟為上策,或諸埋D錢返黎先認真咁去玩機.
